The lab comes to you.
A complete flash-test laboratory built into a van, trailer or container, for incoming inspection, dispute resolution and on-site quality control, anywhere in the world.
Three measurements, one trip.
IV characterisation, EL imaging and hipot, done on the same module, in the same workflow, with the same calibration chain. No second vendor, no second mobilisation.
Lab-grade IV under any sky.
An A+A+A+ pulsed flash with a true 100 ms exposure, long enough to measure HJT, TOPCon and bifacial modules without hysteresis. An optional traceable reference brings accredited-grade rating to the field.
See every microcrack before it costs you.
High-resolution EL imaging up to 150 Mpx captures cell-level defects: microcracks, finger interruptions, dead areas and mismatch, on the same module, in the same loading cycle as the IV flash.
Insulation integrity, on the spot.
Dry hipot up to 6 kV, with insulation resistance and continuity to IEC 61215 and IEC 61730, so isolation faults are caught at commissioning instead of after the next storm.
Accredited-grade measurement, on location.

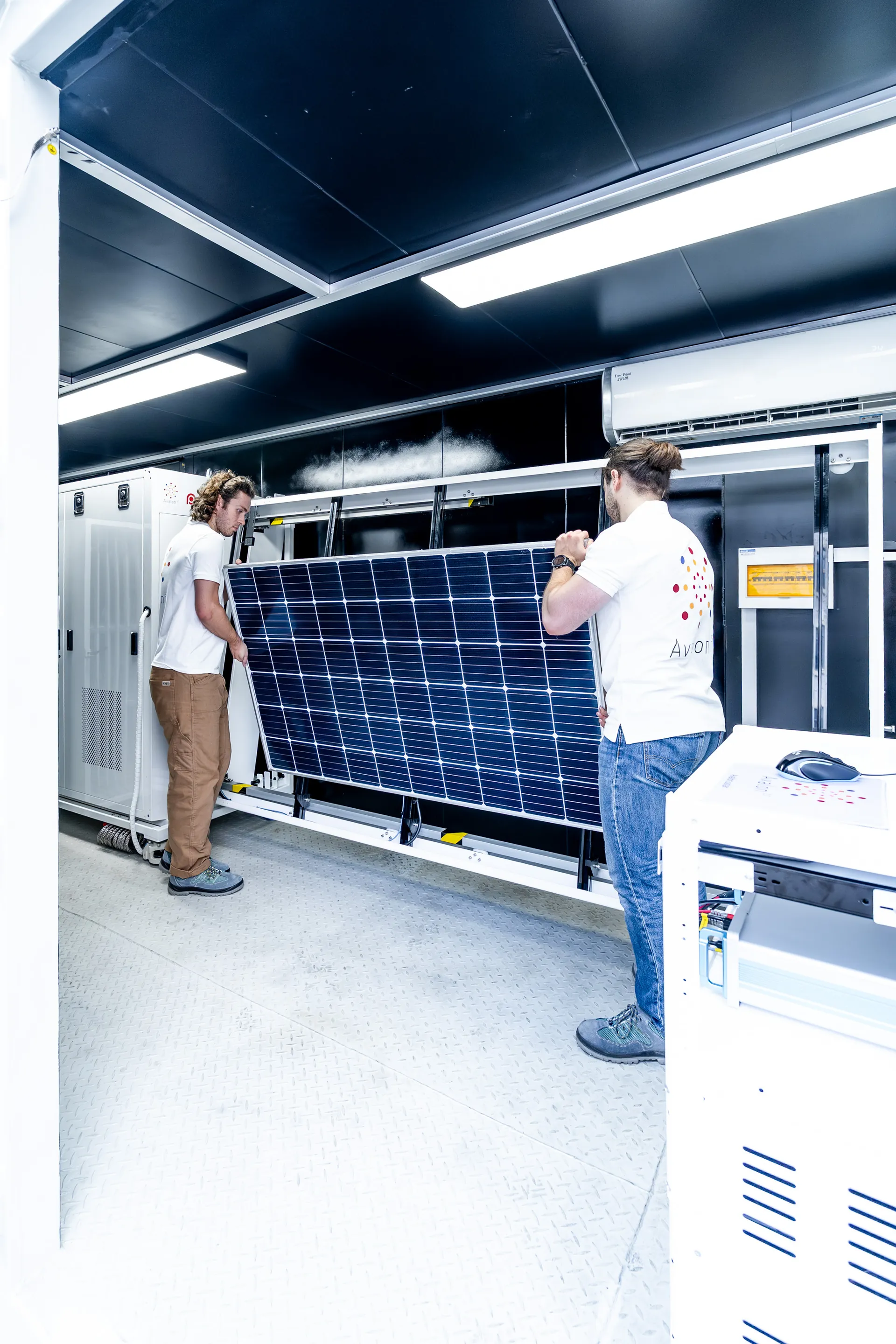

Some questions can't wait for a module to ship to a lab. The Mobile Lab puts a calibrated flasher, contacting and electroluminescence imaging on site, so you can verify incoming shipments, settle warranty disputes and audit production where it happens.
- ▸MeasurementIV rating · EL imaging · hipot
- ▸Qualityaccredited-grade, traceable
- ▸Use casesincoming QC · disputes · audits
- ▸PlatformAvalon ST mobile system

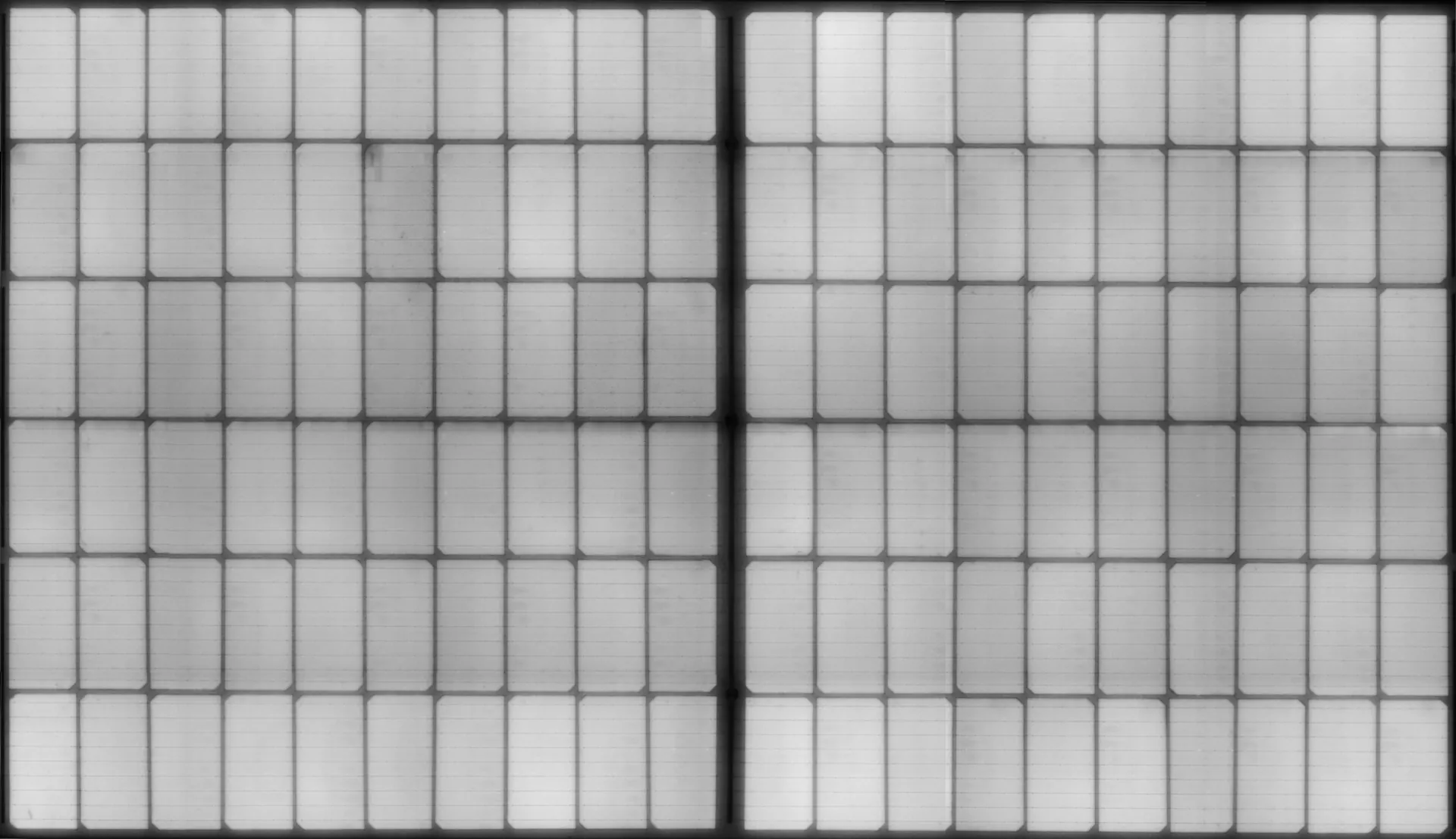

Every cell, every defect, in one shot.
A high-resolution camera array drops over the module and captures the full panel in a single sweep. Microcracks, finger interruptions, dead cells and series mismatch show up cell by cell, on the same loading cycle as the IV flash.
- ▸Resolutionup to 150 Mpx, cell by cell
- ▸Workflowsame loading cycle as IV
- ▸Outputsortable evidence for claims
Pick the chassis. Same lab inside.
A van for site-to-site audits, a trailer for plant-side commissioning, a container for the largest modules and longest deployments. The optics and electronics don't change.

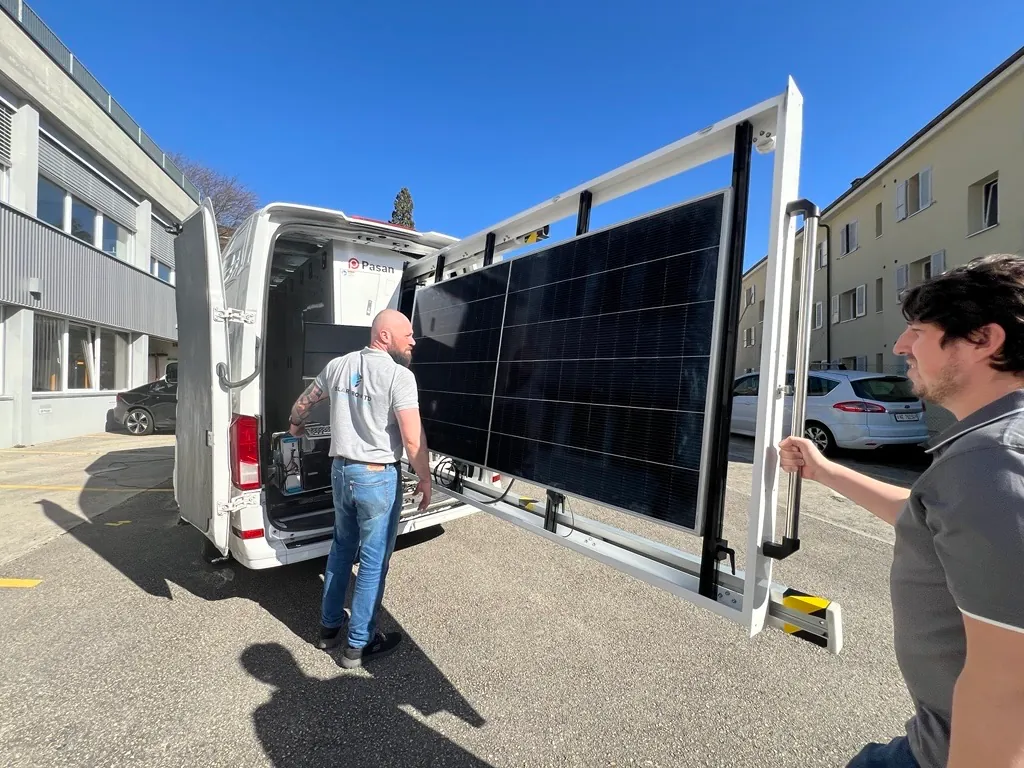

Van
Drive between sites and deploy in minutes. Ideal for spot checks, incoming inspection and audits where the truck moves, not the modules.

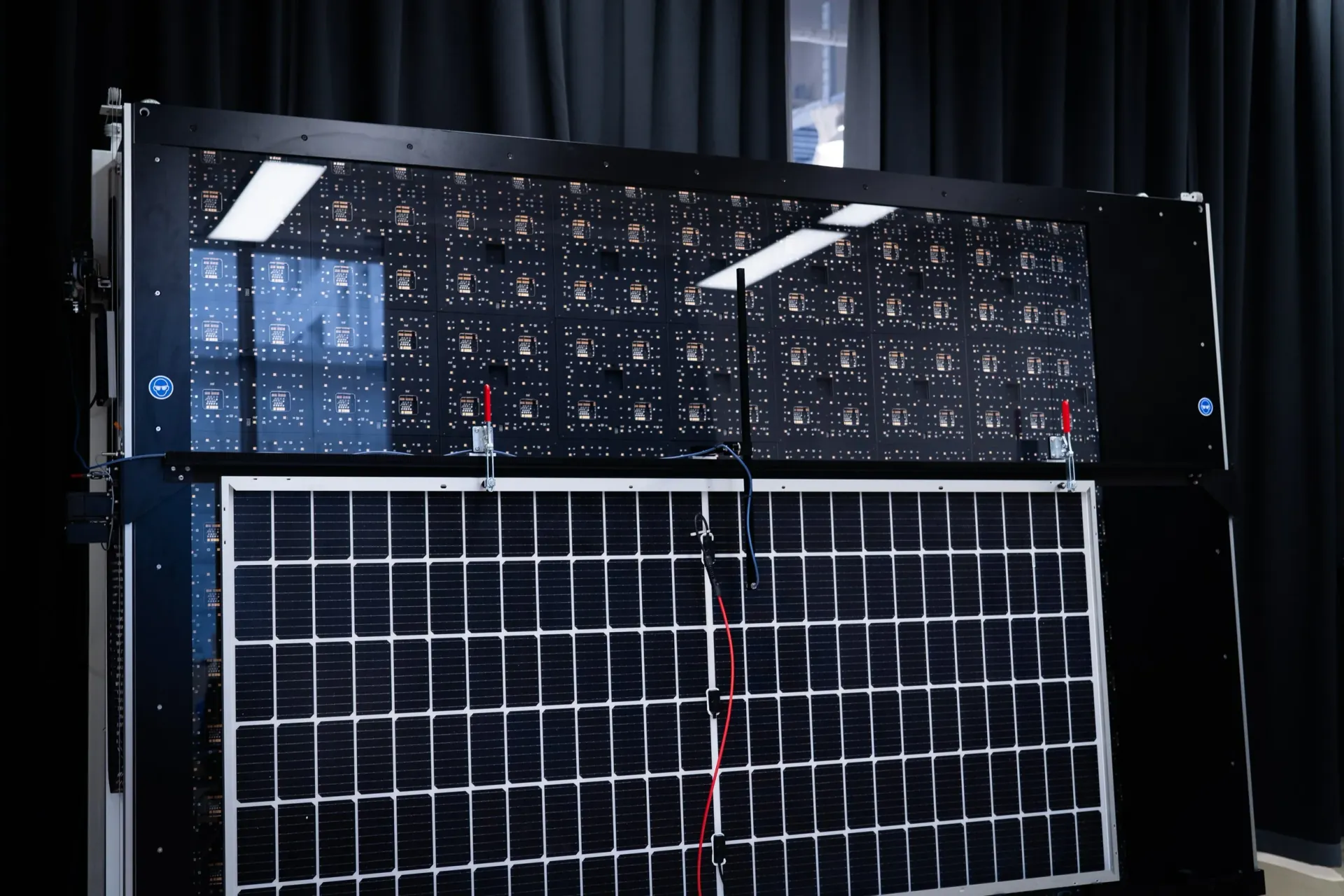

Trailer
More space and throughput, towable between sites. Walk-in operation for plant-side, day-to-day testing where the modules come to the bay.

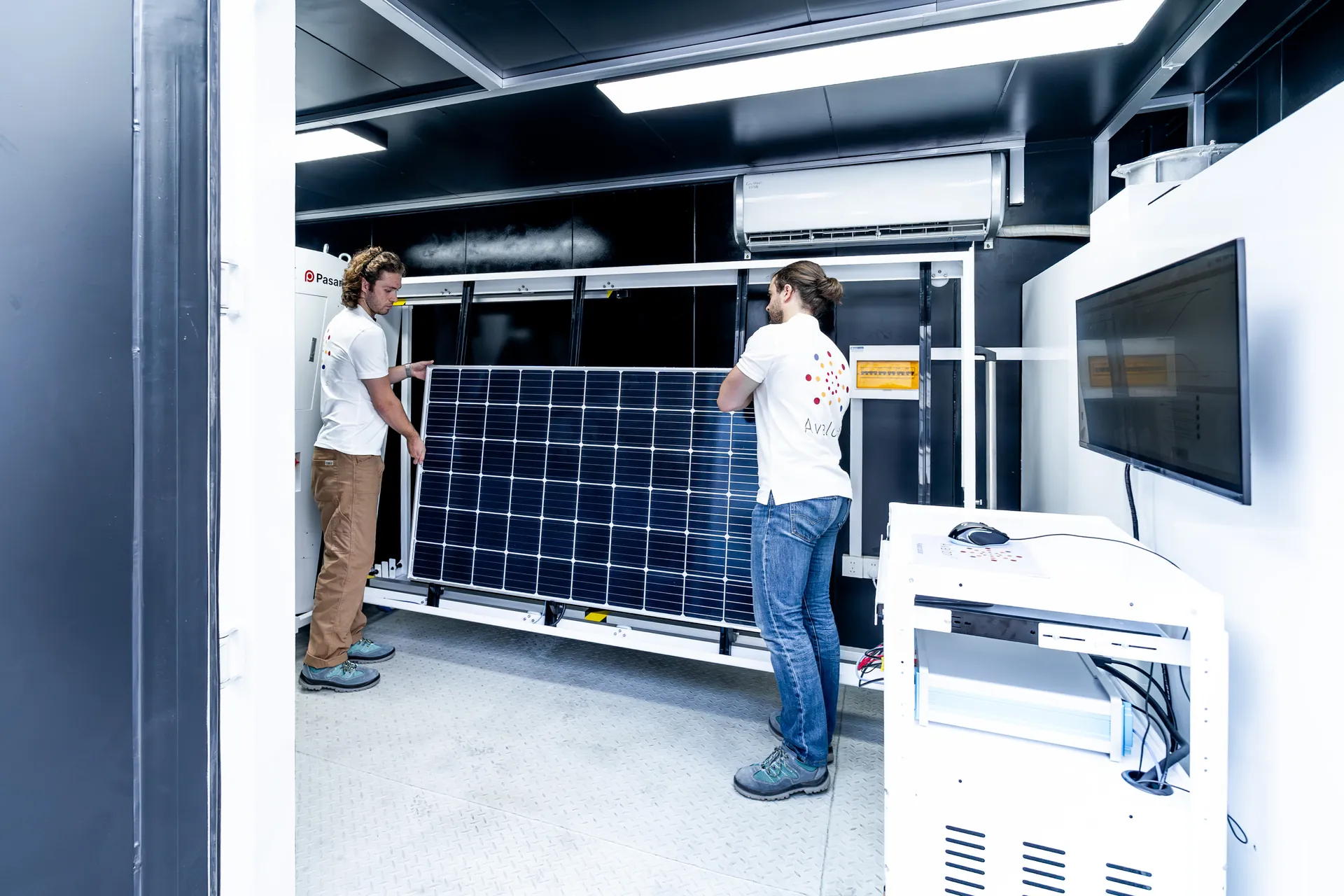

Container
A full laboratory you can ship and install anywhere. Mounts on a flatbed, plug in shore power or an onboard genset, ready to test on arrival.
Built for the realities of field work.
- ▸Incoming inspection: verify every shipment on the dock before it goes up.
- ▸Warranty and insurance claims: defensible, traceable evidence with EL backing.
- ▸Commissioning and acceptance: sign modules off before they are installed, not after.
- ▸Re-flash ageing plants: quantify degradation across a 10 to 15 year-old fleet.
- ▸Damaged-shipment triage: sort recoverable modules from scrap on the spot.
- ▸Repower and retrofit: measure incumbent modules before deciding to replace.
Every number, on the table.
Configuration options, calibration certificates and camera variants are detailed in the full datasheet. Ask our metrology team for access.
| IEC class | A+A+A+ flash |
|---|---|
| Pulse | True 100 ms exposure |
| Measurements | IV rating · EL imaging · hipot |
| Uniformity | <1% over the test area |
| EL imaging | Up to 150 Mpx array, auto-stitched |
| Hipot | Dry, up to 6 kV, IEC 61215 / 61730 |
| Throughput | 60+ modules / hour |
| Module types | PERC · TOPCon · HJT · IBC · bifacial · thin-film |
| Calibration | Optional traceable reference |
| Power | 230 V single-phase or onboard genset |
| Formats | Van · trailer · container |
| Platform | Avalon ST mobile system |
