HighLIGHT 100ms Lab
100ms Lab

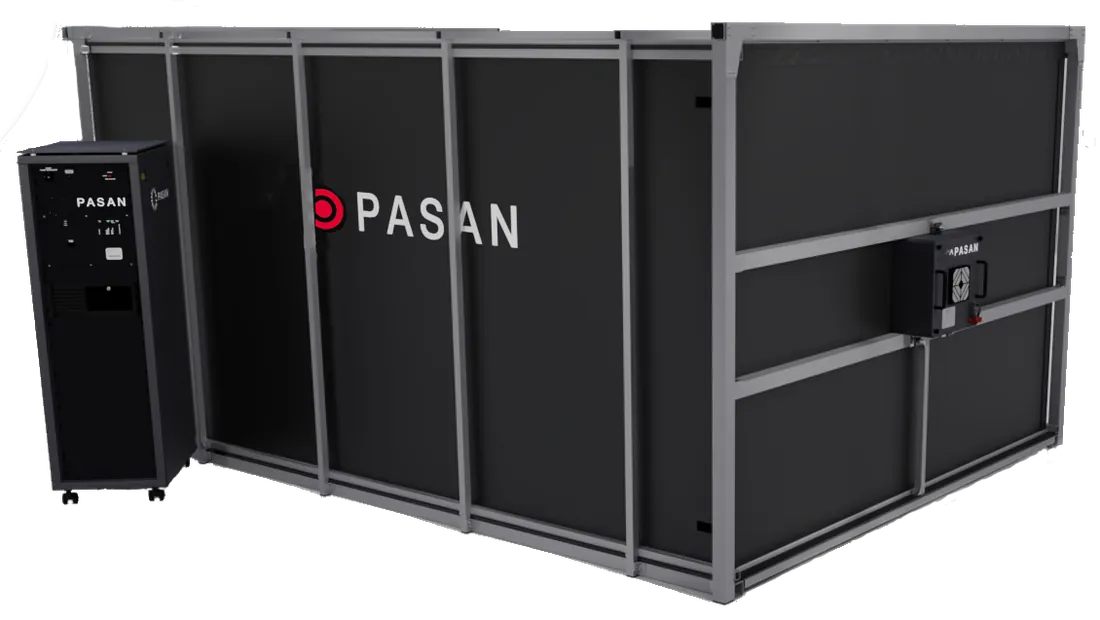

The HighLIGHT 100ms Lab is a long-pulse xenon solar simulator built for calibration-grade module I-V testing. A 40 to 100 ms plateau is long enough to measure the most capacitive cells (HJT, TOPCon) without hysteresis, classified A+A+A+ under IEC 60904-9, with the thermal chamber, spectral-response and incidence-angle options that make it a complete PV characterisation laboratory in one Swiss-made instrument.
HighLIGHT · 40–100 ms · A+A+A+
Long enough for the cells the rest can't measure.
High-efficiency devices store charge: flash them too fast and the IV curve is wrong. A 40–100 ms plateau gives the device time to settle, so the measurement reflects the cell, not the transient. DragonBack® and SmartSweep handle even the most capacitive technologies, from PERC to HJT.
- ▸Pulse length40 – 100 ms
- ▸Spectral classA+A+A+ (IEC 60904-9)
- ▸Test areaup to 2.8 × 1.6 m
- ▸MethodsDragonBack® · SmartSweep
Thermal, spectral response and angle, built in.
The 100ms Lab is the base for a complete characterisation suite: an integrated thermal chamber for temperature coefficients, a 15-filter set for module-level spectral response, and a rotating holder for incidence-angle and bifacial response, all on the same calibrated platform.
- ▸Thermal chamber15 – 75 °C, ±1 °C
- ▸Spectral response15 filters · 400 – 1100 nm
- ▸Incidence angle±90° rotation (IEC 61853-2)
- ▸AlsoEL imaging · attenuation masks
